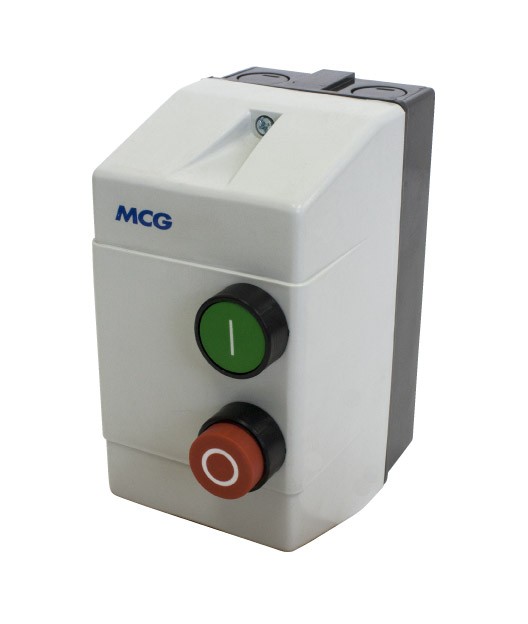

MTR STRTR PLAS ENCL START-STOP W/O O/L 120VAC
| Part Number | ME1D183G7 |
|---|---|
| Weight | 0.3900 |
| Type | Full Voltage Non-Reversing |
| Coil Voltage | 120VAC 50/60Hz |
| IND Amps | 18A |
| HP@ 120V, 1ph | 1 |
| HP@ 230V, 1ph | 3 |
| HP@ 208V, 3ph | 5 |
| HP@ 240V, 3ph | 5 |
| HP@ 480V, 3ph | 10 |
| HP@ 600V, 3ph | 15 |
| Enclosure Type | 4, Plastic |
| Cover Control | Start-Stop Push buttons |
| Approvals | UL, CSA |
| Diameter | No |
| Length | 7 5/16 (in) / 185 (mm) |
| Width | 4 (in) / 101 (mm) |
| Height | 6 1/8 (in) / 155 (mm) |
