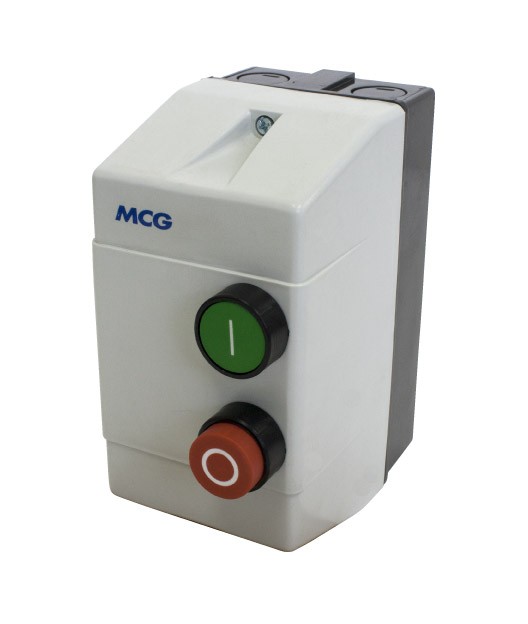

MTR STRTR PLAS ENCL START-STOP W/O O/L 208VAC

MCG

MTR STRTR PLAS ENCL START-STOP W/O O/L 208VAC

Check Inventory At Other Locations Check Inventory At Other Locations

Email to a Friend Be the first to review this product

Quick Overview

N/A

MTR STRTR PLAS ENCL START-STOP W/O O/L 208VAC

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

N/A
Part Number ME1D123L6
Weight 0.3900
Type Full Voltage Non-Reversing
Coil Voltage 208VAC 60Hz
IND Amps 12A
HP@ 120V, 1ph 1
HP@ 230V, 1ph 1
HP@ 208V, 3ph 3
HP@ 240V, 3ph 3
HP@ 480V, 3ph 7.5
HP@ 600V, 3ph 10
Enclosure Type 1, Metal
Cover Control Reset Only (Add Cover Control Quick Kit)
Approvals UL, CSA
Diameter No
Length 6 9/16 (in) / 166 (mm)
Width 3 15/32 (in) / 88 (mm)
Height 5 17/32 (in) / 140 (mm)
