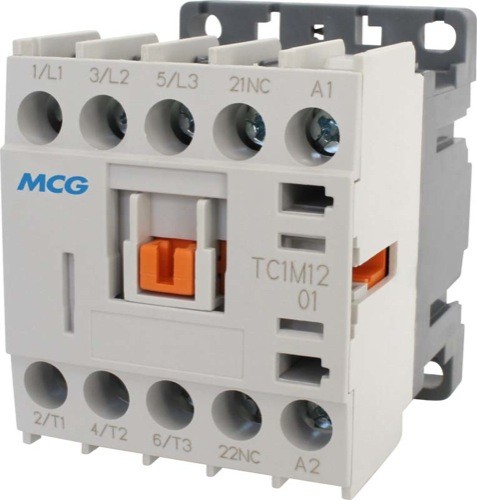

MINI CONT 3P 12A AC3 1NC 24VDC
| Part Number | MTP1-M1201BD |
|---|---|
| Weight | 0.0800 |
| Type | Non-Reversing |
| Poles | 3 Pole |
| Coil | 24VDC |
| AUX | 1NC |
| IND Amps | 12A |
| RES Amps | 20 |
| HP@ 120V, 1ph | 1 |
| HP@ 230V, 1ph | 3 |
| HP@ 208V, 3ph | 5 |
| HP@ 240V, 3ph | 5 |
| HP@ 480V, 3ph | 10 |
| HP@ 600V, 3ph | 15 |
| Approvals | cULus |
| Length | 2 5/16 (in) / 58 (mm) |
| Width | 1 25/32 (in) / 45 (mm) |
| Height | 2 1/4 (in) / 57 (mm) |
