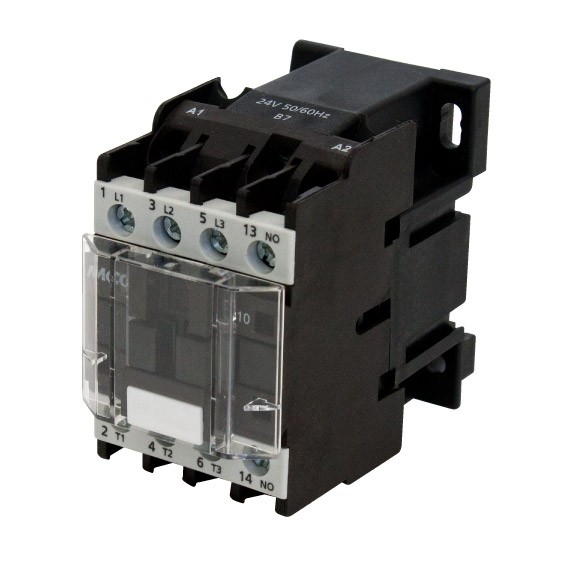

CONT 4P 9A AC3 2NO-2NC POLES 24VAC
| Part Number | MC1D09008B7 |
|---|---|
| Weight | 0.1500 |
| Type | Nonreversing |
| Poles | 4 Pole, 2NO / 2NC |
| Coil | 24VAC 50/60Hz |
| IND Amps | 9A |
| RES Amps | 25A |
| HP@ 120V, 1ph | 0.5 |
| HP@ 230V, 1ph | 1 |
| HP@ 208V, 3ph | 2 |
| HP@ 240V, 3ph | 2 |
| HP@ 480V, 3ph | 5 |
| HP@ 600V, 3ph | 7.5 |
| Approvals | UL, CSA, CE |
| Length | 3 5/32 (in) / 80 (mm) |
| Width | 1 25/32 (in) / 45 (mm) |
| Height | 2 15/16 (in) / 74 (mm) |
