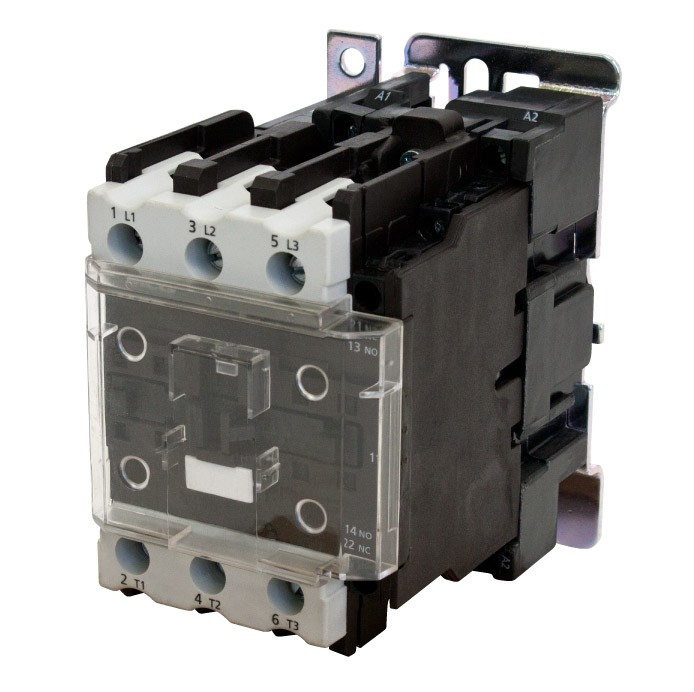

CONT 4P 80A AC3 4NO POLES 240VAC
| Part Number | MC1D80004U7 |
|---|---|
| Weight | 0.8200 |
| Type | Nonreversing |
| Poles | 4 Pole, 4NO |
| Coil | 240VAC 50/60Hz |
| IND Amps | 80A |
| RES Amps | 125A |
| HP@ 120V, 1ph | 7.5 |
| HP@ 230V, 1ph | 15 |
| HP@ 208V, 3ph | 20 |
| HP@ 240V, 3ph | 25 |
| HP@ 480V, 3ph | 60 |
| HP@ 600V, 3ph | 60 |
| Approvals | UL, CSA, CE |
| Length | 4 3/4 (in) / 120 (mm) |
| Width | 3 25/32 (in) / 96 (mm) |
| Height | 5 (in) / 127 (mm) |
