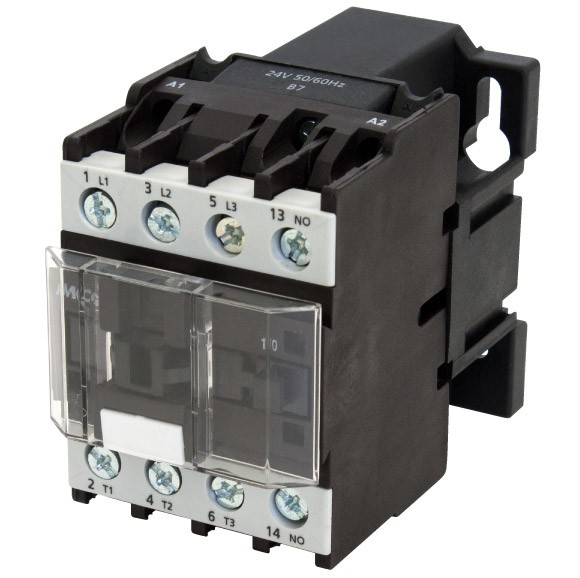

CONTACTOR 3 POLE 40AMP AC-3 1-NORMALLY OPEN/1-NORMALLY CLOSED 24VAC
Details
CONT 3P 40A AC3 1NO-1NC 24VAC
| Part Number | MC1D4011B7 |
|---|---|
| Weight | 0.5000 |
| Type | Nonreversing |
| Poles | 3 Pole |
| Coil | 24VAC 50/60Hz |
| AUX | 1NO / 1NC |
| IND Amps | 40A |
| RES Amps | 60A |
| HP@ 120V, 1ph | 3 |
| HP@ 230V, 1ph | 5 |
| HP@ 208V, 3ph | 10 |
| HP@ 240V, 3ph | 10 |
| HP@ 480V, 3ph | 30 |
| HP@ 600V, 3ph | 30 |
| Approvals | UL, CSA, CE |
| Diameter | No |
| Length | 4 1/2 (in) / 114 (mm) |
| Width | 2 31/32 (in) / 75 (mm) |
| Height | 5 (in) / 127 (mm) |
