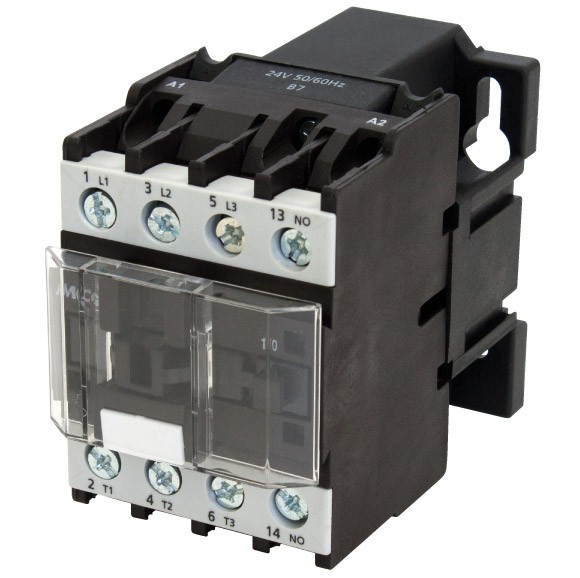

CONT 3P 25A AC3 1NC 24VDC
| Part Number | MP1D2501BD |
|---|---|
| Weight | 0.3600 |
| Type | Nonreversing |
| Poles | 3 Pole |
| Coil | 24VDC |
| AUX | 1NC |
| IND Amps | 25A |
| RES Amps | 40A |
| HP@ 120V, 1ph | 2 |
| HP@ 230V, 1ph | 3 |
| HP@ 208V, 3ph | 5 |
| HP@ 240V, 3ph | 7.5 |
| HP@ 480V, 3ph | 15 |
| HP@ 600V, 3ph | 20 |
| Approvals | UL, CSA, CE |
| Length | 5 1/8 (in) / 130 (mm) |
| Width | 2 7/32 (in) / 56 (mm) |
| Height | 3 5/16 (in) / 84 (mm) |
