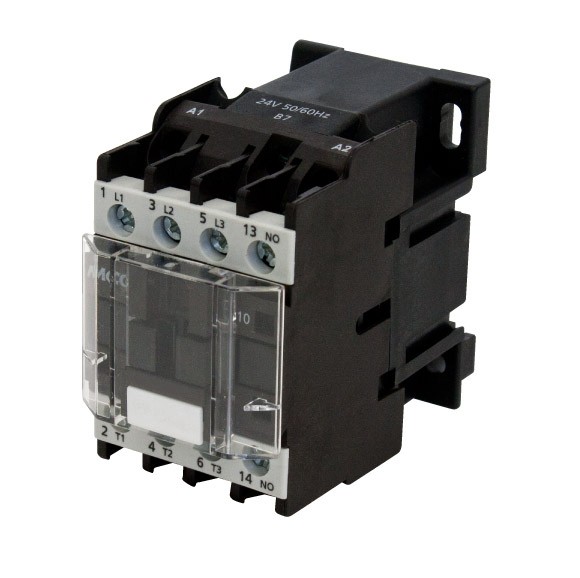

CONT 3P 18A AC3 1NO 24VDC
| Part Number | MP1D1810BD |
|---|---|
| Weight | 0.2600 |
| Type | Nonreversing |
| Poles | 3 Pole |
| Coil | 24VDC |
| AUX | 1NO |
| IND Amps | 18A |
| RES Amps | 32A |
| HP@ 120V, 1ph | 1 |
| HP@ 230V, 1ph | 3 |
| HP@ 208V, 3ph | 5 |
| HP@ 240V, 3ph | 5 |
| HP@ 480V, 3ph | 10 |
| HP@ 600V, 3ph | 15 |
| Approvals | UL, CSA, CE |
| Length | 4 3/4 (in) / 120 (mm) |
| Width | 1 25/32 (in) / 45 (mm) |
| Height | 2 15/16 (in) / 74 (mm) |
