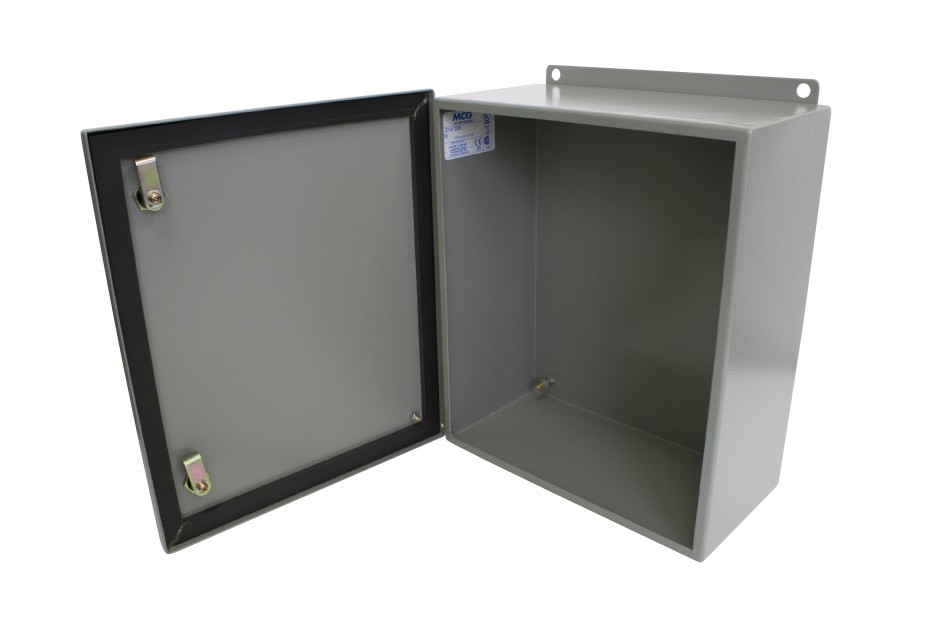

ENCL STL NEMA 4/12 16x14x8" HINGED CVR B'PLATE

ENCL STL NEMA 4/12 16x14x8" HINGED CVR B'PLATE

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Part Number MS 161408
Weight 21.0000
Type NEMA 4-4x-12 / IP65
Size 16" x 14" x 8"
Steel Gauge 16 Guage
Cover Hinged lift-off c/w 1/4 latch
Back Plate Inc 14 Guage Galvanised Plate
Colour ANSI/ASA61 GREY
Approvals CSA, UL
Applications Type 4-4x-12 / IP65 enclosure designed for INDOOR / OUTDOOR housing of electrical, pneumatic or hydraulic instruments
Length 16 (in) / 407 (mm)
Width 14 (in) / 356 (mm)
Height 8 (in) / 204 (mm)
