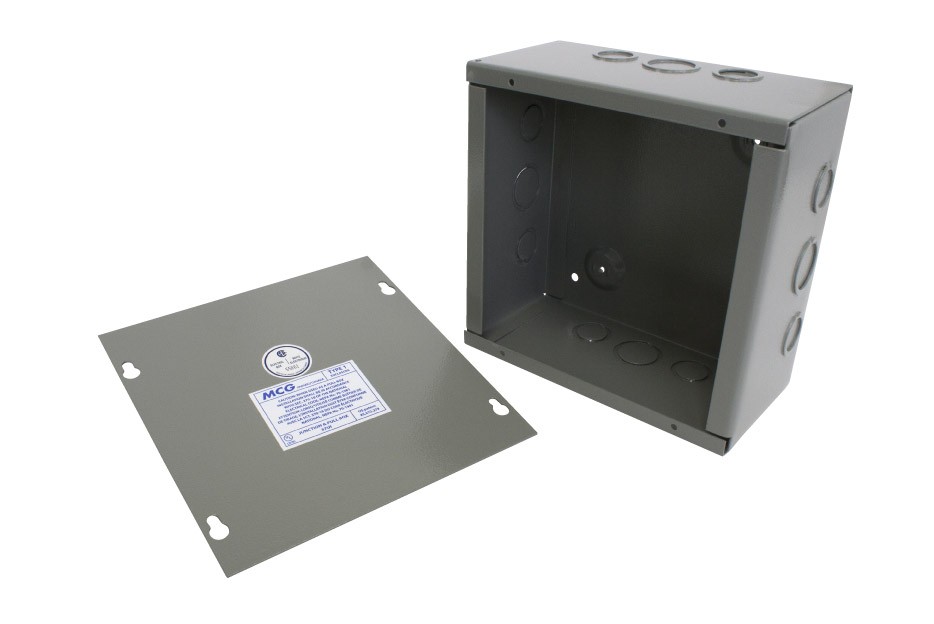

MCG NEMA1 16x16x6" SCREW COVER ENCLOSURE c/w KO's
| Part Number | MDUKO16166 |
|---|---|
| Weight | 15.0000 |
| Type | NEMA 1 |
| Size | 16" x 16" x 6" |
| Steel Gauge | 16 Gauge |
| Cover | Screw Cover |
| Knockouts Side | 2x 1/2"-3/4" & 3x 3/4"-1" |
| Knockouts Top | 2x 1/2"-3/4" & 3x 3/4"-1" |
| Back Plate Inc | NO |
| Colour | ANSI/ASA61 GREY |
| Approvals | CSA, UL |
| Applications | Type 1 surface or flush mounted (on request) generally used as a junction or pull, switch or general service box. Screw-on cover may be switched for a screw hinged cover |
| Length | 16 (in) / 407 (mm) |
| Width | 16 (in) / 407 (mm) |
| Height | 6 (in) / 153 (mm) |
