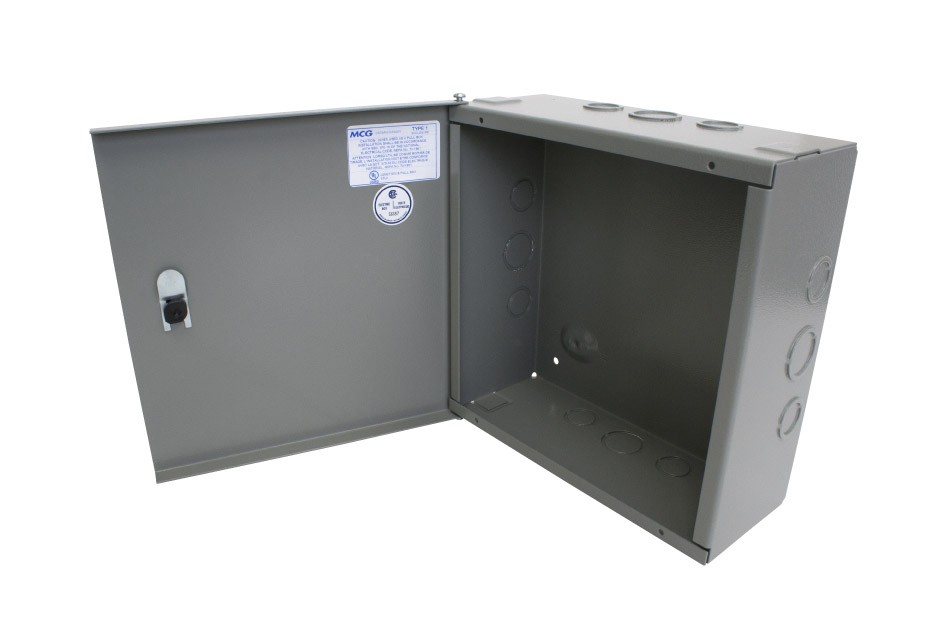

MCG NEMA1 10x10x4" HINGED CUTOUT BOX c/w KO's
| Part Number | MEUKO10104 |
|---|---|
| Weight | 7.0000 |
| Type | NEMA 1 |
| Size | 10" x 10" x 4" |
| Steel Gauge | 16 Gauge |
| Cover | Hinged |
| Knockouts Side | 2x 1/2"-3/4" & 1x 3/4" |
| Knockouts Top | 2x 1/2"-3/4" & 1x3/4"-1" |
| Back Plate Inc | NO |
| Colour | ANSI/ASA61 GREY |
| Approvals | CSA, UL |
| Applications | Type 1 surface mounted box generally used as a junction or pull, switch or general service box. Hinged cover may be changed to a screw cover |
| Length | 10 (in) / 254 (mm) |
| Width | 10 (in) / 254 (mm) |
| Height | 4 (in) / 102 (mm) |
