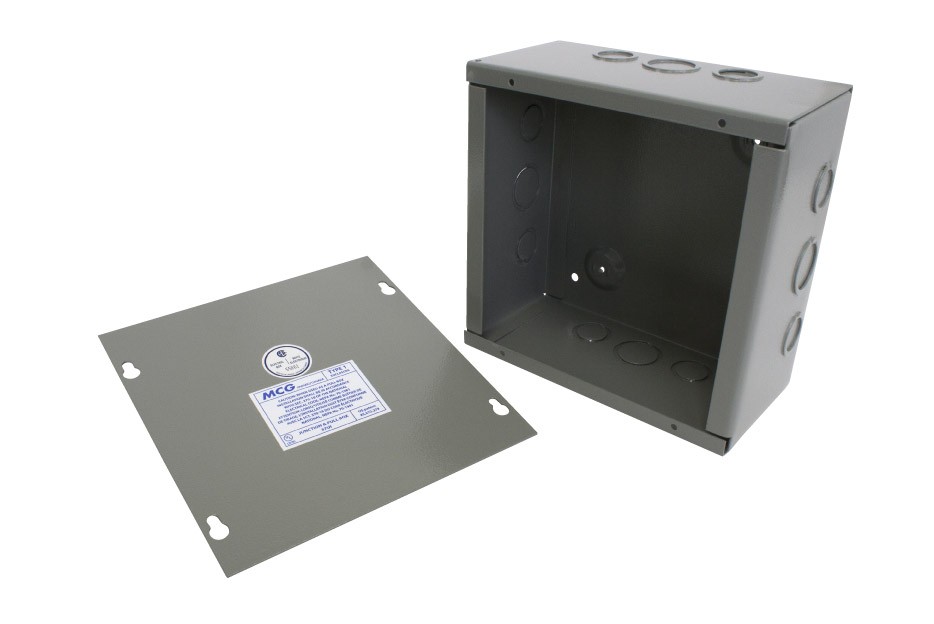

MCG NEMA1 12x12x4" SCREW COVER ENCLOSURE c/w KO's

MCG NEMA1 12x12x4" SCREW COVER ENCLOSURE c/w KO's

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Part Number MDUKO12124
Weight 9.0000
Type NEMA 1
Size 12" x 12" x4"
Steel Gauge 16 Gauge
Cover Screw Cover
Knockouts Side 2x 1/2"-3/4" & 1x 3/4"-1"
Knockouts Top 2x 1/2"-3/4" & 1x3/4"-1"
Back Plate Inc NO
Colour ANSI/ASA61 GREY
Approvals CSA, UL
Applications Type 1 surface or flush mounted (on request) generally used as a junction or pull, switch or general service box. Screw-on cover may be switched for a screw hinged cover
Length 12 (in) / 305 (mm)
Width 12 (in) / 305 (mm)
Height 4 (in) / 102 (mm)
